Are lay-in ceiling tiles fire-rated?

Yes. Metal lay-in ceiling tiles supplied by Yashvi Infra Co are non-combustible — Class A fire rated. They do not burn, spread flames, or emit toxic gases — meeting fire safety requirements for commercial, hospital, and institutional buildings in Ahmedabad and Gujarat.

Lay-In Ceiling Tiles in Ahmedabad | Metal T-Bar Grid Ceiling

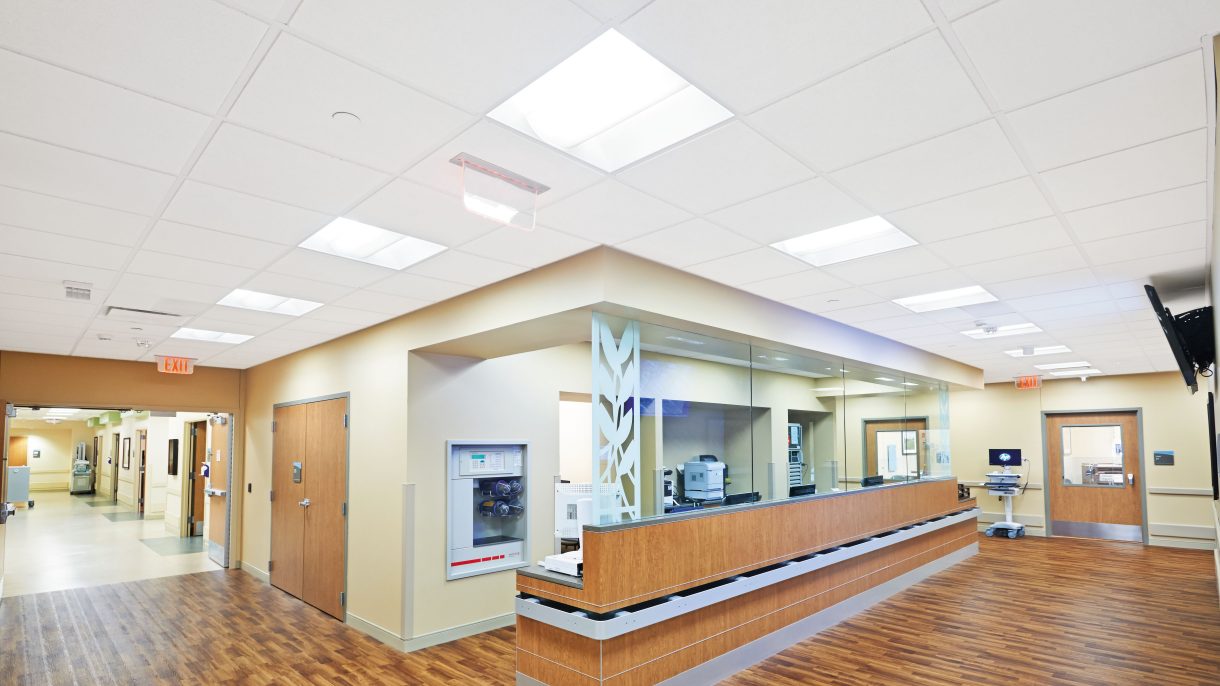

600x600mm metal ceiling tiles on T-bar grid system — Yashvi Infra Co Gujarat

T-Bar Grid Ceiling Ahmedabad

Lay-In Ceiling Tiles in Ahmedabad & Gujarat

Lay-in ceiling tiles are flat metal panels that rest inside a suspended T-bar grid system — the most practical and widely installed ceiling tile system for commercial spaces across Ahmedabad and Gujarat. Each tile simply tilts in from below and lays flat on the grid flanges. Any single tile can be lifted and replaced individually for maintenance access — without removing or disturbing the surrounding ceiling.

Yashvi Infra Co supplies and installs metal lay-in ceiling tiles in 600×600mm and 600×1200mm sizes — in aluminum and GI material with powder-coat white, off-white, and custom colors. The most specified ceiling tile for IT offices, server rooms, hospitals, laboratories, government buildings, and commercial interiors across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat.

Tile Sizes

600×600 & 600×1200mm

Material

Aluminum / GI

Fire Rating

Class A — Non-Combustible

Access

Any tile — no tools

Lift-Out Access to Any Tile — No Tools Needed

Any individual tile can be tilted and lifted from the grid in seconds — no tools, no screws, no panel removal. Essential for IT rooms, data centres, hospitals, and commercial buildings in Ahmedabad where regular ceiling access is required.

Standard Metric Sizes — 600×600mm & 600×1200mm

Supplied in standard Indian metric sizes to fit standard T-bar grid systems available across Ahmedabad and Gujarat. The 600×600mm tile is the most installed size for commercial offices — clean, uniform, and professional.

Complete T-Bar Grid System Supplied & Installed

We supply the complete system — tiles, T-bar main runners, cross tees, wall angles, hanger rods, and anchor bolts — and install everything with our in-house team across Gujarat. No separate sourcing needed.

Tile Options

Lay-In Ceiling Tile Types We Supply in Ahmedabad

All types are available in 600×600mm and 600×1200mm sizes. Choose based on your surface requirement, budget, and the environment — office, hospital, IT room, or wet area.

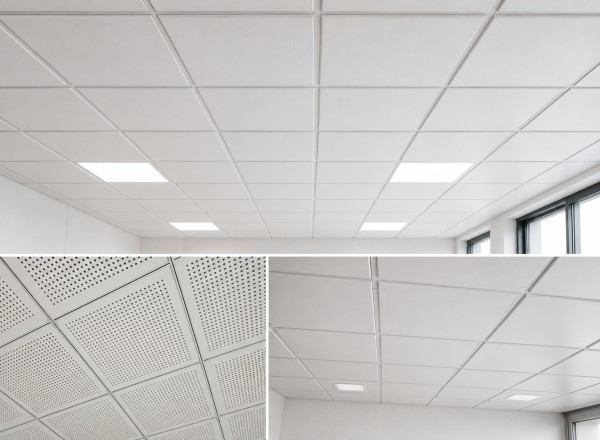

Plain perforated metal lay-in ceiling tile 600x600mm for office — Yashvi Infra Co Ahmedabad

Plain / Perforated Metal Tiles

Smooth flat or micro-perforated surface — the standard lay-in tile for offices, corporate spaces, and commercial interiors. The perforated variant improves sound absorption while maintaining a clean appearance. Most widely installed in Ahmedabad's commercial buildings.

Plain or micro-perforated surface
600×600 & 600×1200mm
White, off-white, custom RAL
Best for: offices, IT parks, schools

Get a Quote

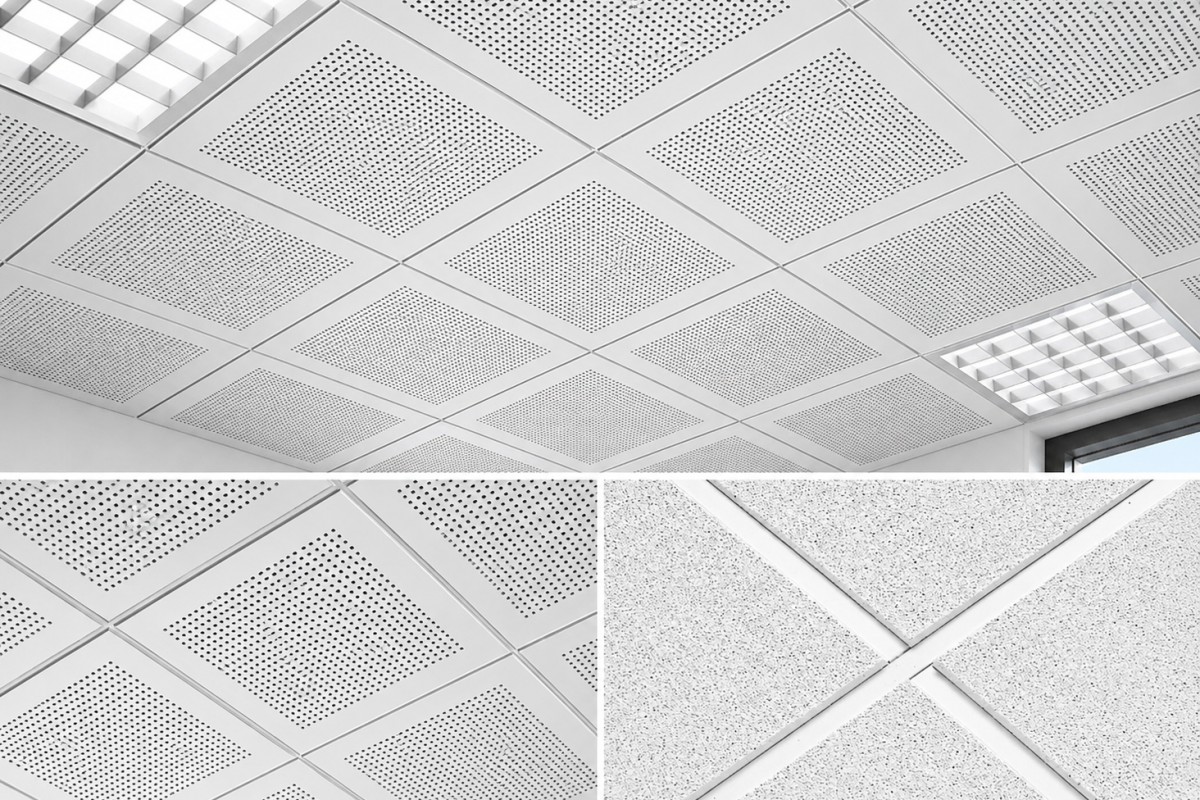

Tegular shadow-line metal ceiling tile for premium commercial interiors — Yashvi Infra Co Gujarat

PREMIUM LOOK

Tegular / Shadow-Line Tiles

Tegular tiles have a stepped notch on the edge so the tile face drops below the grid — creating an architectural shadow line between tiles. Gives a more premium, designed appearance than standard flat lay-in. Popular for boardrooms, hotel corridors, and upscale commercial spaces in Ahmedabad.

Stepped edge — shadow line detail
More premium look than flat lay-in
Same T-bar grid — easy replacement
Best for: boardrooms, premium offices

Get a Quote

Moisture-resistant metal lay-in ceiling tile for hospital and wet area — Yashvi Infra Co Gujarat

Moisture-Resistant Tiles

Specially coated aluminum or GI tiles for high-humidity environments — kitchens, hospital clean rooms, laboratories, food processing areas, and wet utility spaces. Powder-coat finish resists moisture, condensation, and corrosion in Gujarat's humid climate without rusting or degrading.

Anti-corrosion coating
Suitable for 90%+ humidity environments
Easy to wipe and sanitize
Best for: hospitals, kitchens, labs

Get a Quote

Sizes & Specifications

Lay-In Ceiling Tile — Complete Technical Specifications

Parameter	600×600mm Tile	600×1200mm Tile
Nominal Size	600 × 600 mm	600 × 1200 mm
Actual Tile Size	595 × 595 mm	595 × 1195 mm
Grid Opening	600 × 600 mm module	600 × 1200 mm module
Material	Aluminum (AA3003) / GI
Thickness	0.4 mm / 0.5 mm / 0.6 mm
Surface Finish	Powder coat — White, Off-White, Custom RAL
Surface Type	Plain flat / Micro-perforated / Tegular
T-Bar Grid Profile	24mm or 38mm main runner (standard)
Main Runner Spacing	1,200 mm	1,200 mm
Cross Tee Spacing	600 mm	600 mm
Hanger Rod Spacing	1,200 mm centres (recommended)
Fire Rating	Non-combustible — Class A rated
MEP Access	Individual tile lift-out — no tools required
Expected Lifespan	15 – 25 years with standard maintenance

600×600mm vs 600×1200mm — Which to Choose?

600
×
600

600×600mm — Square Tile ⭐ Most Popular

Creates a uniform square grid pattern — cleaner, more symmetrical look. Easier to manage on site — smaller tiles weigh less, easier to cut for borders. Best for: offices, IT rooms, labs, hospitals, schools, and most commercial spaces in Ahmedabad.

600
×
1200

600×1200mm — Rectangular Tile

Creates a rectangular grid — fewer visible grid lines, more open and spacious feel. Slightly faster to install for large areas. Best for: long corridors, conference rooms, large open offices, and warehouse office areas across Gujarat.

Quick Rule of Thumb

For spaces under 500 sq ft — choose 600×600mm for a balanced look. For large open-plan offices or corridors over 500 sq ft — 600×1200mm gives a more spacious feel with fewer visible grid lines. Not sure? Contact us for a free consultation in Ahmedabad.

Lay-In vs Clip-In

Lay-In vs Clip-In Ceiling Tiles — Which Is Right for Your Project?

Both are metal tile systems on a T-bar-style grid — but the fixing method, appearance, and access are different. Here's how to choose in Ahmedabad and Gujarat.

Feature	Lay-In Tiles This Page	Clip-In Tiles
Fixing Method	Rests on grid flanges — no fixing	Clips / locks onto concealed grid
Grid Visibility	T-bar grid visible from below	Grid fully concealed — cleaner look
Tile Removal	Tilt & lift — no tools	Special removal tool required
MEP Access Speed	Seconds — any tile	Slower — tool needed per tile
Aesthetic	Practical, grid-visible look	Premium — no visible grid
Cost	Lower — simpler system	Higher — concealed grid system
Installation Speed	Fast	Moderate — more precise alignment
Best For	IT rooms, hospitals, offices, labs	Hotel rooms, premium offices, retail
Available at Yashvi Infra	Yes	Yes

Installation Process

How Yashvi Infra Co Installs Lay-In Ceiling Tiles in Ahmedabad

Site Survey & Grid Layout Planning

We measure the room precisely and plan the T-bar grid layout — centring the grid so border tiles are equal on opposite walls. Chalk lines are snapped at the required drop height across all four walls.

Wall Angle (Perimeter Channel) Fixing

L-shaped wall angle is fixed along chalk lines on all four walls using anchor bolts or wall plugs — this supports the entire perimeter of the grid and provides a clean edge finish against the walls.

Hanger Rod Installation

Hanger rods are anchored into the RCC slab at 1,200mm centres along each main runner location using anchor bolts. Each rod hangs plumb and straight to the required drop height.

Main Runner (T-Bar) Installation

Main T-bar runners are hung from hanger rods and levelled precisely using a laser level. For 600×600mm tiles, main runners are spaced at 1,200mm centres.

Cross Tee Installation

600mm cross tees are snapped between main runners to create 600×600mm grid openings. For 600×1200mm tiles, only 1,200mm cross tees are used.

MEP & Light Fixture Integration

Recessed LED light fixtures, AC supply/return diffusers, fire sprinkler drop positions, smoke detector cut-outs, and CCTV mounts are positioned and integrated into the grid before tile installation.

Tile Placement & Border Tile Cutting

Each tile is tilted at 45°, inserted above the grid, then lowered flat onto the flanges. Border tiles are measured and cut on site with metal cutters. Final inspection and client handover.

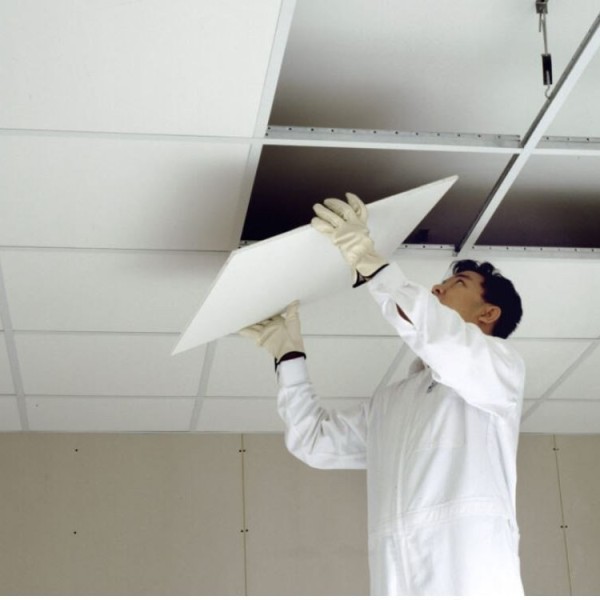

T-bar grid ceiling tile installation in Ahmedabad office — Yashvi Infra Co Gujarat

Applications

Where Lay-In Ceiling Tiles Are Installed in Ahmedabad & Gujarat

IT Offices & Data Centres

The #1 ceiling system for IT offices and server rooms across Ahmedabad — any tile lifts out in seconds for cable routing, server maintenance, or network equipment access above the ceiling plenum. No disruption to the surrounding ceiling.

Hospitals & Clinics

Hospital OPDs, wards, corridors, and diagnostic centres across Ahmedabad — metal tiles are non-combustible, easy to wipe-clean, and provide full access to the medical gas pipes, electrical conduits, and HVAC systems above.

Commercial Offices

Standard T-bar grid with lay-in tiles is the most installed ceiling system in commercial offices across Ahmedabad and Gujarat — cost-effective, practical, and professional. Widely used in BPO offices, government buildings, and corporate parks.

Laboratories & Clean Rooms

Research labs, pharmaceutical clean rooms, and quality control areas — moisture-resistant metal tiles with smooth wipe-clean surfaces meet hygiene requirements while providing access to the laboratory utilities above the ceiling.

Schools & Colleges

Classrooms, libraries, staff rooms, and administrative areas in schools and colleges across Ahmedabad — affordable, durable, and easy to replace individual damaged tiles without full ceiling rework.

Government & Institutional

Government offices, municipal buildings, court complexes, and institutional spaces across Gujarat — lay-in tiles meet public building fire safety requirements while delivering cost-effective, long-lasting ceiling solutions.

FAQ

Frequently Asked Questions

What are lay-in ceiling tiles?

Lay-in ceiling tiles are flat metal panels (600×600mm or 600×1200mm) that rest inside a suspended T-bar grid system. Any tile can be tilted and lifted individually for ceiling access without removing surrounding tiles. They are the most practical ceiling tile system for offices, IT rooms, hospitals, and commercial spaces in Ahmedabad and Gujarat.

What is the difference between lay-in and clip-in ceiling tiles?

Lay-in tiles rest on the visible T-bar grid — easy lift-out access with no tools, lower cost, grid visible from below. Clip-in tiles lock onto a concealed grid — no visible grid, premium appearance, but slower removal needing a special tool. Lay-in is preferred where regular access is needed; clip-in for premium aesthetics.

What sizes are available for lay-in ceiling tiles in Ahmedabad?

Yashvi Infra Co supplies lay-in ceiling tiles in 600×600mm (most popular for offices in Ahmedabad) and 600×1200mm (for large open spaces and corridors). Both sizes fit the standard T-bar grid systems used in commercial construction across Gujarat.

Are metal lay-in tiles fire-rated?

Yes — metal lay-in tiles are non-combustible (Class A fire rated). They do not burn, spread flames, or emit toxic gases. This makes them suitable for all commercial buildings, hospitals, government offices, and public spaces in Ahmedabad that require fire-safety-compliant ceiling materials.

Can a single tile be replaced without disturbing others?

Yes — this is the biggest advantage of the lay-in system. Any single tile can be tilted and removed without touching adjacent tiles. If one tile gets damaged, dented, or stained, only that tile needs to be replaced — not the surrounding ceiling. Individual replacement tiles are always available from Yashvi Infra Co.

Does Yashvi Infra Co install lay-in ceiling tiles in Ahmedabad?

Yes — we supply the complete system (tiles + T-bar grid + hanger rods) and install lay-in ceiling tiles across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. Free site visit, itemised quote, in-house installation team, and full warranty support included.

Get In Touch

Get a Free Quote for Lay-In Ceiling Tiles in Ahmedabad

Planning a T-bar grid ceiling for your office, hospital, IT room, or commercial space in Ahmedabad or Gujarat? Yashvi Infra Co supplies and installs the complete lay-in ceiling tile system — tiles, grid, hangers, and all accessories — with professional installation and warranty support. Contact us for a free site visit and itemised quote.
