What thickness is available for 84R / 184R GI ceiling panels?

Yashvi Infra Co supplies Linear 84R and 184R metal ceiling panels in GI (Galvanised Iron) in two thickness options — 0.5mm and 0.6mm. The 0.6mm option provides greater rigidity for longer spans and higher-traffic spaces.

Linear 84R / 184R Metal Ceiling in Ahmedabad | Round Edge False Ceiling

Q: What is a Linear 84R metal ceiling?

Linear 84R is a round-edge metal false ceiling panel with an 84mm face width. Unlike the 84C (sharp C-edge), the 84R has a rounded profile edge that creates a softer, more refined visual finish. It is made from GI (Galvanised Iron) in 0.5mm or 0.6mm thickness and available in panels up to 5,000mm (5 meters) in length.

Q: What is the maximum panel length for 84R and 184R ceiling?

The maximum panel length for Linear 84R and 184R metal ceiling panels supplied by Yashvi Infra Co is 5,000mm (5 meters). Custom lengths up to 5 meters are available on order.

Q: What is the difference between 84R and 84C ceiling panels?

The 84C has a sharp C-shaped edge profile giving a crisp, precise look — popular for offices and commercial spaces. The 84R has a round-edge profile giving a softer, more elegant appearance — preferred for hotels, hospitality, and premium interiors. Both have the same 84mm face width.

Q: Does Yashvi Infra Co install 84R / 184R ceiling in Ahmedabad?

Yes. Yashvi Infra Co supplies and installs Linear 84R and 184R round-edge metal false ceilings across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. We offer free site visits, itemised quotes, in-house installation, and warranty support.

Linear 84R round-edge GI metal false ceiling installed in commercial space — Yashvi Infra Co Ahmedabad

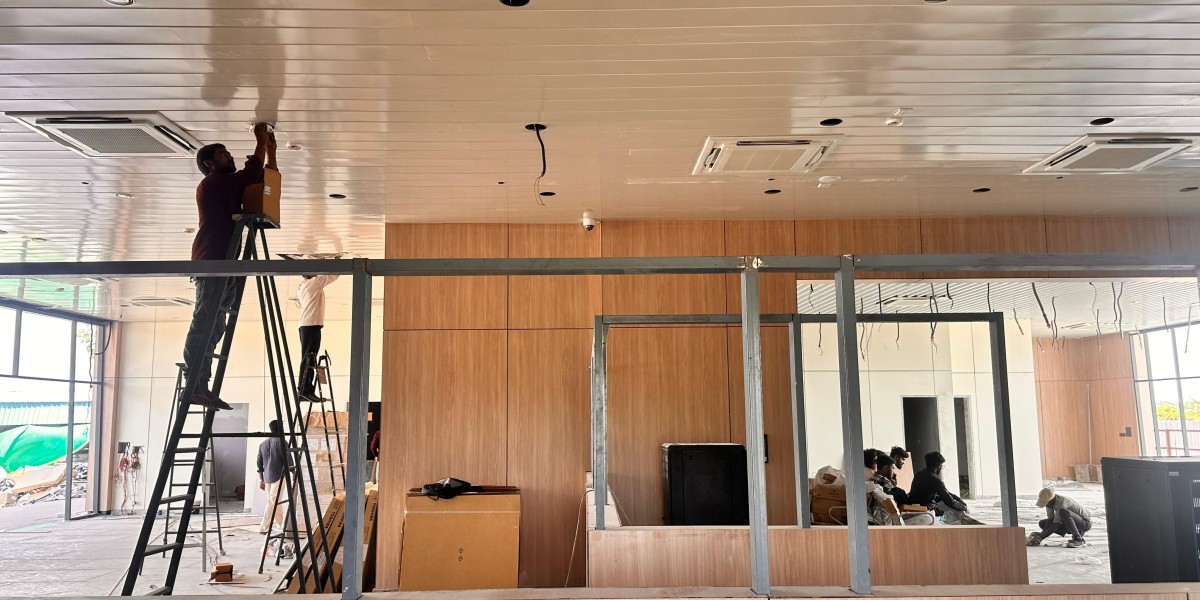

Linear 184R round-edge metal ceiling panel installation in Gujarat — Yashvi Infra Co

Round Edge False Ceiling

Linear 84R / 184R Metal Ceiling in Ahmedabad & Gujarat

The Linear 84R and 184R are round-edge GI metal false ceiling panels — designed for spaces that demand a softer, more refined visual finish compared to the sharp C-edge of the 84C profile. The rounded edge creates a gentle shadow line between panels, adding depth and elegance to any ceiling in Ahmedabad and Gujarat.

Yashvi Infra Co supplies and installs 84R and 184R panels in GI (Galvanised Iron) material, available in 0.5mm and 0.6mm thickness, with panel lengths up to 5,000mm (5 meters). Finished in powder-coat white, off-white, or custom RAL colors — these panels are a popular choice for hotels, hospitality spaces, premium offices, hospitals, and commercial interiors across Ahmedabad, Surat, Vadodara, and all of Gujarat.

Panel Width

84 mm / 184 mm

Thickness

0.5 mm & 0.6 mm

Max Length

Up to 5,000 mm

Material

GI (Galvanised Iron)

Soft Round-Edge Profile

The rounded edge creates a subtle shadow line between panels — giving a more elegant, refined look compared to sharp C-edge panels. Preferred for premium interiors and hospitality spaces.

Two Thickness Options — 0.5mm & 0.6mm

Choose 0.5mm for standard commercial applications or upgrade to 0.6mm for greater panel rigidity on longer spans up to 5 meters or in high-traffic spaces.

Panels Up to 5 Meters Long

Maximum panel length of 5,000mm allows large rooms to be covered with fewer joints — cleaner finish, faster installation, and a more seamless ceiling appearance.

Choose Your Panel

84R vs 184R — Which Panel Width Is Right for Your Space?

84R — 84mm Width

Linear 84R

The 84R panel has an 84mm face width with a soft rounded edge profile. It creates a finer, more detailed linear look with a gentle shadow line — ideal for medium-sized rooms where you want a clean but elegant ceiling finish.

Face Width	84 mm
Profile	Round Edge (R-profile)
Material	GI (Galvanised Iron)
Thickness	0.5 mm / 0.6 mm
Max Length	5,000 mm (5 meters)
Gap Options	0 – 30 mm adjustable
Best For	Offices, corridors, clinics, homes

Get a Quote for 84R

184R — 184mm Width

Linear 184R

The 184R panel has a 184mm face width with the same soft rounded edge — creating a bolder, wider linear appearance with fewer visible panel joints. Ideal for large open areas where a clean, expansive ceiling is desired.

Face Width	184 mm
Profile	Round Edge (R-profile)
Material	GI (Galvanised Iron)
Thickness	0.5 mm / 0.6 mm
Max Length	5,000 mm (5 meters)
Gap Options	0 – 30 mm adjustable
Best For	Malls, showrooms, hotels, open offices

Get a Quote for 184R

Full Specifications

Linear 84R / 184R Complete Technical Specifications

Parameter	84R Specification	184R Specification
Profile Type	Round Edge (R-profile)	Round Edge (R-profile)
Face Width	84 mm	184 mm
Panel Lengths	Custom cut — up to 5,000 mm (5 meters) maximum
Material	GI — Galvanised Iron only
Thickness Options	0.5 mm (standard) \| 0.6 mm (heavy duty)
Surface Finish	Powder Coat — White, Off-White, Custom RAL color
Gap Between Panels	Adjustable — 0 mm to 30 mm
Suspension System	T-bar runner & hanger rod system (concealed)
Hanger Rod Spacing	900 mm – 1,200 mm centres (recommended)
Max Unsupported Span	Up to 2,400 mm with standard hanger system
Fire Performance	Non-combustible — Class A fire rated
Corrosion Resistance	High — GI coating provides moisture & rust resistance
Lighting Integration	Recessed LED, downlights, AC grilles — all cuttable on site
Recyclability	100% recyclable GI material
Expected Lifespan	15 – 25 years with standard maintenance

Important Note on Specifications

Linear 84R and 184R panels are supplied in GI (Galvanised Iron) material only — not available in aluminum. Maximum panel length is 5,000mm (5 meters). For panels longer than 5 meters or aluminum material requirements, please consider the Linear 84C / 184C range instead. Contact us to discuss your project requirements.

Profile Comparison

84R vs 84C — What Is the Difference?

Both are 84mm linear ceiling panels — but the edge profile is different. Here's how to choose between them.

Feature	84R This Page	84C
Edge Profile	Round (soft curve)	C-shape (sharp edge)
Visual Effect	Soft, elegant shadow line	Crisp, precise linear look
Material	GI only	Aluminum & GI
Thickness	0.5 mm / 0.6 mm	0.5 / 0.6 / 0.7 / 0.8 mm
Max Length	5,000 mm	6,000 mm
Best Aesthetic	Premium, refined, warm	Modern, sharp, commercial
Ideal Spaces	Hotels, hospitality, premium offices	IT parks, hospitals, schools
Custom Colors	Yes	Yes
Wooden Finish	Not available	Available

Simple rule of thumb

Choose 84R / 184R if…

Your space is a hotel lobby, restaurant, premium office reception, or high-end retail store — anywhere a softer, more luxurious ceiling finish is preferred over a sharp industrial look.

Choose 84C / 184C if…

Your space is an IT office, hospital, school, or industrial facility — where a crisp, clean sharp-edge finish is preferred and wooden grain finish or aluminum material is required.

Not sure?

Contact us for a free consultation. We'll help you choose the right profile, width, thickness, and finish for your specific project in Ahmedabad or Gujarat.

Get Free Consultation

Applications

Where Linear 84R / 184R Ceiling Is Installed

Hotels & Hospitality

The soft round-edge shadow line of the 84R profile perfectly suits hotel lobbies, restaurants, banquet halls, and guest corridors — adding understated elegance without the cost of custom millwork ceilings.

Premium Corporate Offices

Boardrooms, executive cabins, and reception lobbies in corporate headquarters across Ahmedabad — where a more refined ceiling finish sets the right tone for clients and visitors.

Retail Showrooms

Jewellery stores, automobile showrooms, and lifestyle retail spaces across Gujarat — the 184R wide panel creates an expansive, premium ceiling plane with minimal visible joints.

Hospitals & Clinics

GI material with powder-coat finish is non-combustible, moisture-resistant, and easy to clean — meeting hygiene standards for patient wards, OPD areas, and clinical corridors in Ahmedabad.

Malls & Commercial Spaces

184R wide panels are ideal for large mall corridors, food courts, and common areas — long 5-meter panels span wide spaces with fewer joints for a cleaner, uninterrupted ceiling finish.

Luxury Residences

Premium apartment living rooms, dining areas, and home theatres in Ahmedabad — the 84R round-edge profile gives a subtle architectural ceiling detail without an overpowering industrial look.

Key Benefits

Why Choose Linear 84R / 184R for Your Ceiling?

Premium Round-Edge Aesthetic

The rounded edge creates a soft shadow line between panels — more refined and elegant than sharp C-edge profiles. Sets the 84R apart for premium interior applications across Ahmedabad and Gujarat.

Up to 5 Meter Panels — Fewer Joints

Custom lengths up to 5,000mm cover large rooms with fewer cut joints — resulting in a cleaner, more seamless ceiling finish and faster installation with less wastage on site.

0.6mm Thickness for Heavy Duty Use

The 0.6mm GI option provides greater panel rigidity — ideal for longer span installations, high-ceiling spaces, or areas with higher load requirements such as integrated light fixtures and AC units.

Non-Combustible — Class A Fire Rated

GI metal is inherently non-combustible. The 84R and 184R panels are Class A fire rated — safe for hospitals, commercial buildings, and any project with strict fire safety requirements across Gujarat.

GI Coating — Corrosion & Moisture Resistant

The galvanised iron coating provides excellent protection against corrosion and moisture — suitable for humid environments such as coastal areas, ground-floor commercial spaces, and kitchens.

Zero Maintenance

Powder-coated GI ceiling panels need no repainting, polishing, or sealing. Just wipe clean with a damp cloth. Maintenance-free for 15–25 years with the GI galvanisation protecting the panel long-term.

FAQ

Frequently Asked Questions

What is a Linear 84R metal ceiling?

Linear 84R is a round-edge GI metal false ceiling panel with an 84mm face width. The rounded edge creates a soft shadow line between panels for a more elegant finish. It is available in 0.5mm and 0.6mm thickness with panel lengths up to 5,000mm (5 meters).

What is the maximum length of 84R / 184R panels?

The maximum panel length for Linear 84R and 184R ceiling panels supplied by Yashvi Infra Co is 5,000mm (5 meters). Custom lengths up to 5 meters are available on order. Panels longer than 5 meters are not available in the R-profile range.

What thickness is available for 84R / 184R panels?

Yashvi Infra Co supplies 84R and 184R panels in GI (Galvanised Iron) only, in two thickness options — 0.5mm for standard applications and 0.6mm for greater rigidity on longer spans and high-traffic spaces.

What is the difference between 84R and 84C ceiling panels?

The 84R has a round edge — creating a softer, more refined shadow line — while the 84C has a sharp C-edge for a crisper, more commercial look. Both are 84mm wide. The 84R is GI only; the 84C is available in both aluminum and GI with wooden finish options.

Does Yashvi Infra Co install 84R / 184R ceiling in Ahmedabad?

Yes — we supply and install Linear 84R and 184R round-edge metal false ceilings across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. Free site visit, itemised quote, in-house installation team, and warranty support included.

Get In Touch

Get a Free Quote for Linear 84R / 184R Ceiling in Ahmedabad

Looking for a round-edge metal false ceiling for your hotel, office, showroom, or commercial project in Ahmedabad or Gujarat? Yashvi Infra Co delivers premium 84R and 184R GI panels — 0.5mm & 0.6mm thickness, up to 5 meters long — with expert installation and full warranty support. Contact us today for a free site visit and itemised quote.
