Is Linear 150F ceiling suitable for petrol pump and CNG pump ?

Yes. The Linear 150F metal ceiling is one of the most widely used ceiling systems for petrol pump canopies and CNG pump stations across Gujarat and India. It is non-combustible (Class A fire rated), weatherproof, UV-resistant, and available in standard white and custom colors to match fuel company brand guidelines (HPCL, BPCL, Indian Oil, Reliance, Shell, etc.).

What colors are available for petrol pump ceiling panels?

Linear 150F ceiling panels for petrol pump and CNG stations are available in standard white, off-white, and custom RAL powder-coat colors. Yashvi Infra Co can match the exact brand colors of HPCL, BPCL, Indian Oil, Reliance BP, Shell, and other fuel company color specifications.

Does the 150F ceiling withstand outdoor weather conditions?

Yes. Linear 150F ceiling panels installed on petrol pump and CNG pump canopies are designed for outdoor and semi-outdoor exposure. The powder-coated aluminum or GI material resists UV radiation, rain, humidity, and Gujarat's extreme summer heat — maintaining color and structural integrity for 15-25 years.

Linear 150F Metal Ceiling for Petrol Pump & CNG Pump

Q: What is a Linear 150F metal ceiling?

Linear 150F is a flat-edge metal false ceiling panel with a 150mm face width. The 'F' stands for Flat — meaning the panel edge is flat (no curve or sharp C-shape). It is the widest standard linear ceiling panel, designed for large open spaces like petrol pump canopies, CNG stations, malls, airports, and wide commercial interiors.

Q: Does Yashvi Infra Co install 150F ceiling for petrol pumps in Ahmedabad?

Yes. Yashvi Infra Co installs Linear 150F metal ceiling systems for petrol pump canopies, CNG stations, and commercial spaces across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. We provide free site visits, itemised quotes, and full installation with warranty support.

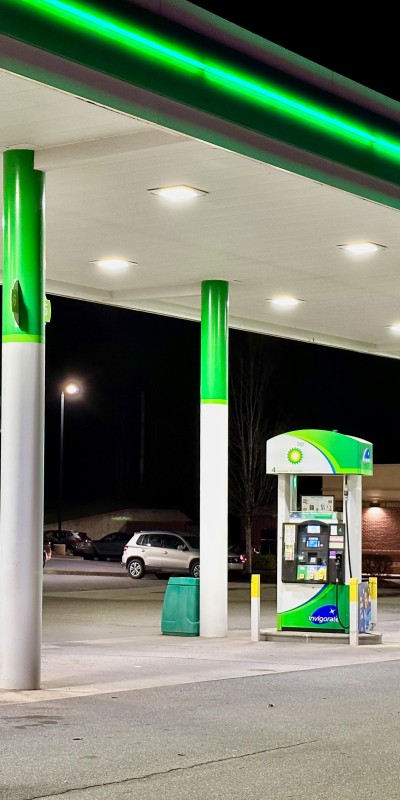

Linear 150F flat metal ceiling installed at petrol pump — Yashvi Infra Co Ahmedabad Gujarat

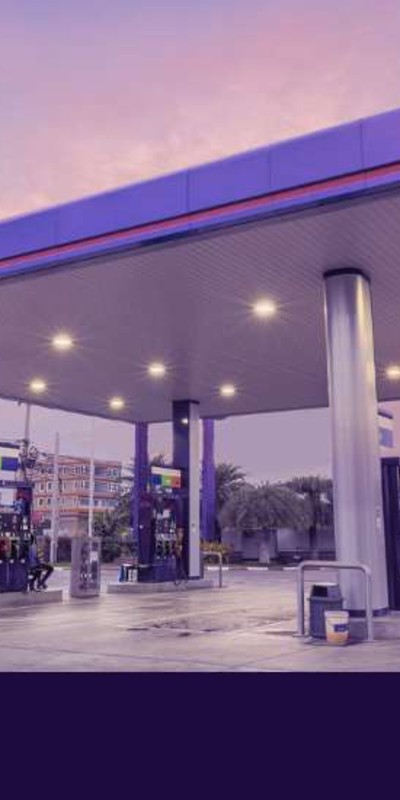

150F wide panel metal ceiling for CNG pump station — Yashvi Infra Co Gujarat

Petrol Pump & CNG Ceiling

Linear 150F Metal Ceiling for Petrol Pump & CNG Pump in Ahmedabad

The Linear 150F is a flat-edge wide metal ceiling panel with a 150mm face width — the largest standard linear ceiling profile we offer. The "F" stands for Flat, meaning the panel edge is completely flat with no curve or C-shape, giving a clean, bold, uninterrupted ceiling plane. It is the most popular metal ceiling choice for petrol pump canopies, CNG pump stations, and fuel station forecourts across Ahmedabad and Gujarat.

Yashvi Infra Co supplies and installs Linear 150F ceiling systems in aluminum and GI material — weatherproof, non-combustible, UV-resistant, and available in standard white and custom RAL colors to match fuel company brand guidelines (HPCL, BPCL, Indian Oil, Reliance BP, Shell, and others). We serve petrol pump owners, CNG station contractors, and commercial builders across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat.

Panel Width

150 mm (Flat Edge)

Material

Aluminum / GI

Fire Rating

Class A — Non-Combustible

Weather

UV & Rain Resistant

Designed for Petrol Pump & CNG Station Canopies

The 150F flat profile is the industry-standard choice for fuel station ceilings across India — non-combustible, weatherproof, and available in brand-matched colors for HPCL, BPCL, Indian Oil, and other fuel companies.

Wide 150mm Panel — Fewer Joints, Cleaner Look

At 150mm wide, each panel covers more area than 84C or 84R profiles — resulting in fewer visible panel joints and a cleaner, more expansive ceiling finish ideal for large structures.

Custom Brand Colors Available

We powder-coat 150F panels to any RAL color or brand specification — matching the exact corporate colors of your fuel company or franchise for a fully compliant petrol pump or CNG station installation.

Petrol Pump & CNG

Why 150F Is the Standard Ceiling for Petrol Pumps & CNG Stations in Gujarat

Fuel station canopies face conditions that no ordinary ceiling can handle — outdoor exposure, heat, fuel vapour, rain, and strict fire safety regulations. The Linear 150F is purpose-built for this environment.

Non-Combustible

Metal is inherently non-combustible — Class A fire rated. Essential for petrol pump and CNG station canopies where fire safety regulations are strictly enforced by PESO (Petroleum and Explosives Safety Organisation).

Weatherproof

Powder-coated aluminum and GI panels resist Gujarat's heavy monsoon rain, UV radiation, and extreme summer heat — maintaining their color and structural integrity for 15–25 years without repainting.

Brand Color Matching

Every major oil company (HPCL, BPCL, Indian Oil, Reliance BP, Shell, Essar) has specific color standards. We match the exact RAL or Pantone specification required for your fuel company franchise.

Ventilation-Friendly

Adjustable gap between 150F panels allows natural air circulation under the — essential for CNG pump stations where gas ventilation is required and for reducing heat build-up in open forecourt areas.

LED Lighting Integration

LED strip lights, recessed downlights, and flood lamps integrate cleanly within the 150F panel system — fully cuttable on site to accommodate any lighting layout required by your fuel company specifications.

Easy to Clean

Petrol pump ceilings accumulate dust, fuel residue, and bird droppings. The smooth powder-coated surface of 150F panels cleans easily with water — requiring no special maintenance over the years.

Brand Color Matching

150F Ceiling for All Major Petrol & CNG Companies in Gujarat

We supply 150F metal ceiling panels in brand-compliant colors for all major fuel and CNG companies. Tell us your franchise — we'll match the exact color specification.

HPCL

Blue & Orange — Hindustan Petroleum color specification. White ceiling panels standard.

BPCL

Red & Green — Bharat Petroleum specifications with custom white or off-white ceiling panels.

Indian Oil

Orange & Blue — Indian Oil Corporation standard. White ceiling panels with brand-matched structure.

Reliance BP

Green & custom — Reliance BP Mobility fuel station ceiling specifications. Custom RAL matching available.

Shell

Yellow & Red — Shell fuel station color standard. Exact RAL powder coat matching available on order.

CNG Stations (MGL / IGL / GSPC)

CNG pump stations — we match GSPC Gas, Adani Gas, IGL, and MGL ceiling color standards. Ventilation-gap design available.

Don't see your fuel company listed? Contact us — we can match any brand color specification.

Technical Details

Linear 150F Technical Specifications

Parameter	150F Specification
Profile Type	Flat Edge (F-profile) — no curve, no C-shape
Face Width	150 mm
Panel Lengths	Custom cut — standard 3,000 / 4,000 / 6,000 mm
Material Options	Aluminum (AA3003) / GI (Galvanised Iron)
Thickness — Aluminum	0.5 / 0.6 / 0.7 / 0.8 mm
Thickness — GI	0.5 / 0.6 mm
Surface Finish	Polyester Powder Coat — min. 60 micron DFT
Standard Colors	White, Off-White — custom RAL on order
Gap Between Panels	Adjustable — 0 mm to 30 mm
Suspension System	T-bar runner & hanger rod — concealed
Fire Rating	Non-combustible — Class A fire rated
UV Resistance	High — suitable for outdoor / semi-outdoor
Weather Resistance	Monsoon, rain, humidity — all conditions
Expected Lifespan	15 – 25 years with standard maintenance
Lighting Compatible	LED strip, recessed downlights, flood lights
PESO Compliance	Non-combustible material — suitable for PESO zones

150F vs 84C / 84R — Which to Choose?

Choose 150F if…

Your space is a petrol pump , CNG station, mall corridor, airport, large showroom, or any wide open area — where wider panels and fewer joints give a bolder, cleaner ceiling plane. Also ideal when a flat profile is required by franchise specifications.

Choose 84C / 184C if…

Your space is a medium-sized office, hospital corridor, classroom, or retail counter where a finer linear look is preferred, or where a wooden grain finish is required.

Choose 84R / 184R if…

Your space is a hotel, premium office, or upscale retail area where a soft round-edge shadow line creates a more refined, elegant interior finish.

Get Free Consultation

Applications

Where Linear 150F Ceiling Is Installed

Petrol Pump

The most installed application for 150F in Gujarat — installed under the forecourt of petrol pumps across Ahmedabad, Gandhinagar, Surat, Vadodara, and all towns. Non-combustible and brand-color compliant for HPCL, BPCL, Indian Oil, and others.

CNG Pump Station

CNG stations require non-combustible, well-ventilated ceiling systems. The 150F panel with open gap design allows natural gas ventilation while maintaining a clean, professional look for GSPC Gas, Adani Gas, IGL, and MGL stations across Gujarat.

Shopping Malls & Atriums

Wide 150mm panels with fewer joints create an expansive, seamless ceiling for large mall corridors, food courts, and atriums across Ahmedabad and Gujarat — bold architectural impact with minimal installation complexity.

Airports & Transit Hubs

Wide-span linear 150F ceilings are used in airport terminal concourses, bus terminals, and railway station waiting halls where a clean, uninterrupted ceiling plane is needed across very large areas.

Car Dealership Showrooms

Automobile showrooms across Ahmedabad use 150F ceilings for their wide, bold appearance that frames vehicles well. Available in brand colors for Maruti, Tata, Hyundai, and other dealership standards.

Industrial & Warehouse Canopies

Factory loading docks, warehouse entrances, and industrial structures — where a durable, weatherproof, low-maintenance ceiling is needed for semi-outdoor covered areas across Gujarat.

FAQ

Frequently Asked Questions

What is a Linear 150F metal ceiling?

Linear 150F is a flat-edge metal ceiling panel with a 150mm face width. The "F" means Flat — no curved or C-shaped edge. It is the widest standard linear ceiling profile, widely used for petrol pump canopies, CNG stations, malls, and large commercial spaces across Ahmedabad and Gujarat.

Is 150F ceiling suitable for petrol pump & CNG ?

Yes — the Linear 150F is the most widely used ceiling for petrol pump and CNG station canopies across Gujarat. It is non-combustible (Class A fire rated), weatherproof, UV-resistant, and available in brand-matched colors for HPCL, BPCL, Indian Oil, Reliance BP, GSPC Gas, and other fuel companies.

What brand colors are available for petrol pump ceiling?

We supply 150F panels in standard white, off-white, and any custom RAL powder-coat color. We can match the exact ceiling color of HPCL, BPCL, Indian Oil, Reliance BP, Shell, GSPC Gas, Adani Gas, IGL, and MGL franchise specifications on order.

Does 150F ceiling withstand outdoor weather in Gujarat?

Yes. Powder-coated aluminum and GI 150F panels are designed for outdoor and semi-outdoor installation — resisting Gujarat's heavy monsoon rain, UV exposure, and extreme summer heat (45°C+) without warping, rusting, or losing color for 15–25 years.

Does Yashvi Infra Co install 150F ceiling for petrol pumps in Ahmedabad?

Yes — we supply and install Linear 150F metal ceilings for petrol pump canopies, CNG stations, and commercial spaces across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. Free site visit, itemised quote, in-house installation, and warranty support included.

Get In Touch

Get a Free Quote for Linear 150F Ceiling Installation

Building a new petrol pump or CNG station in Gujarat? Renovating an existing ceiling? Yashvi Infra Co supplies and installs Linear 150F metal ceiling panels — non-combustible, weatherproof, and brand-color compliant — across Ahmedabad and all of Gujarat. Contact us for a free site visit and competitive quote.
