U-Shaped Baffle Ceiling

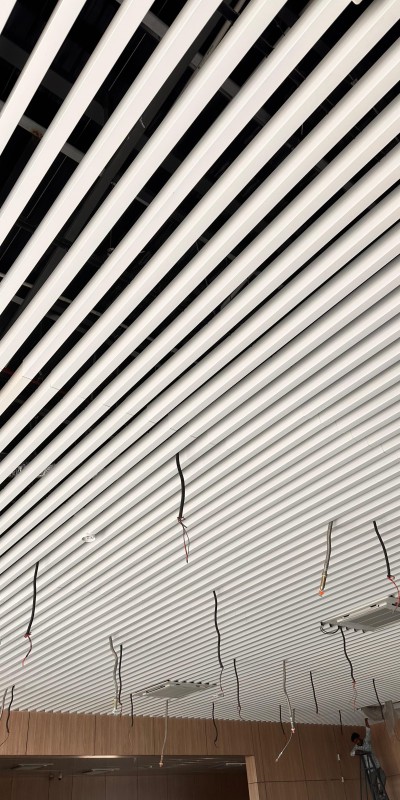

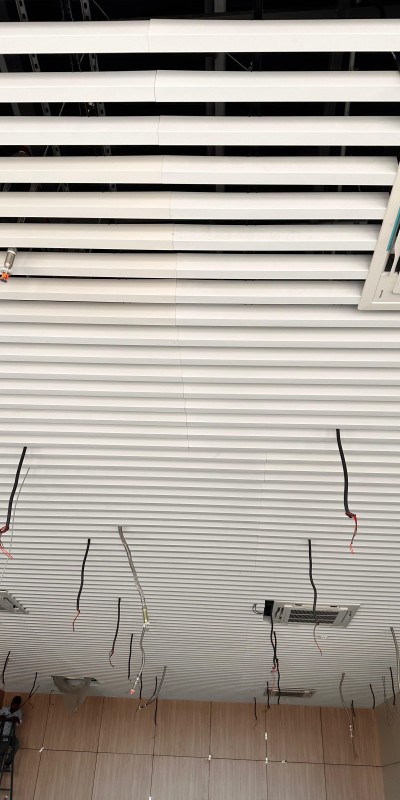

U-shaped baffle ceiling installed in commercial atrium — Yashvi Infra Co Ahmedabad Gujarat Metal baffle ceiling vertical blade system in lobby — Yashvi Infra Co Gujarat
Architectural Ceiling

U-Shaped Baffle Ceiling in Ahmedabad & Gujarat

A U-shaped baffle ceiling is a suspended metal ceiling system made of vertical U-profile blades that hang downward from a concealed ceiling structure. Unlike flat panel ceilings, baffle ceilings create a stunning three-dimensional visual effect — with depth, shadow play, and a dramatic architectural presence that transforms any large space.

Yashvi Infra Co supplies and installs U-shaped baffle ceiling systems in aluminum and GI material, available in multiple blade heights (50mm to 200mm), adjustable pitch spacing, and custom powder-coat colors. Widely used in hotel lobbies, shopping mall atriums, corporate reception areas, airports, restaurants, and premium commercial interiors across Ahmedabad, Surat, Vadodara, Gandhinagar, and all of Gujarat.

Blade Height
50 – 200 mm
Material
Aluminum / GI
Blade Pitch
Custom — 50 to 300 mm
Fire Rating
Class A — Non-Combustible

Dramatic 3D Visual Effect

Vertical blades hanging from the ceiling structure create depth, shadow, and rhythm — making baffle ceilings the most architecturally striking ceiling system available for large commercial spaces.

Full Service & MEP Access

Unlike closed panel ceilings, the open baffle system allows full access to HVAC ducts, fire sprinklers, electrical conduits, and lighting above — ideal for commercial spaces requiring regular service access.

Acoustic Performance

The vertical blade geometry disrupts sound reflection and reduces echo in large open spaces. Optional acoustic infill inside the blade cavity further improves sound absorption — ideal for atriums, lobbies, and conference areas.

Blade Options

U-Shaped Baffle Ceiling — Blade Sizes We Offer

Choose blade height based on your ceiling height, space size, and the visual depth you want. Taller blades create more dramatic shadow play; shorter blades give a subtler linear effect.

50

50mm Blade Height

Subtle linear effect

The smallest blade height — creates a fine, subtle linear baffle effect. Ideal for spaces with lower ceiling heights (3–4m) where a full-depth baffle would feel overwhelming. Popular for offices, restaurants, and retail spaces.

Blade Height50 mm
MaterialAluminum / GI
Thickness0.5 / 0.6 mm
Best ForOffices, restaurants
75

75mm Blade Height

Balanced visual depth

A balanced mid-size blade — enough depth to create visible shadow play without dominating the space. Works well in standard commercial ceiling heights (3.5–5m). Popular for corporate offices, hotel corridors, and healthcare lobbies.

Blade Height75 mm
MaterialAluminum / GI
Thickness0.5 / 0.6 mm
Best ForOffices, hotel corridors
MOST POPULAR
100

100mm Blade Height

Most popular — all spaces

The most widely installed baffle blade size in commercial projects across Ahmedabad and Gujarat. Strong visual impact with excellent shadow depth — works in ceiling heights from 4–8m. The go-to choice for malls, hotel lobbies, and large reception areas.

Blade Height100 mm
MaterialAluminum / GI
Thickness0.5 / 0.6 / 0.7 mm
Best ForMalls, lobbies, hospitals
150

150mm Blade Height

Bold architectural statement

A bold, dramatic blade for high-ceiling spaces — creates powerful shadow depth and strong architectural character. Ideal for atriums, airport terminals, large hotel reception halls, and premium commercial spaces with 6m+ ceiling height.

Blade Height150 mm
MaterialAluminum / GI
Thickness0.6 / 0.7 / 0.8 mm
Best ForAtriums, airports, high-ceiling lobbies
200

200mm Blade Height

Maximum visual impact

The tallest blade — reserved for spaces with the highest ceilings (8m+) where maximum visual depth and drama is required. Used in landmark atriums, premium hotel grand lobbies, convention centres, and architectural signature spaces across Gujarat.

Blade Height200 mm
MaterialAluminum
Thickness0.7 / 0.8 mm
Best ForGrand lobbies, convention halls

Custom Blade Height

Bespoke architectural design

Have a specific design requirement? We manufacture custom blade heights, mixed-blade designs (combining two heights in one space), curved baffle layouts, and colored blade combinations for unique architectural ceiling projects.

Discuss Custom Design
How It Works

How U-Shaped Baffle Ceiling Is Installed

1

Site Survey & Ceiling Height Measurement

Our team measures the ceiling height, span, and space dimensions. We recommend the appropriate blade height, pitch spacing, and layout direction based on your architecture and design intent.

2

Suspension System Installation

Hanger rods are anchored to the RCC slab using anchor bolts. A concealed carrier rail system is installed at the required drop height — levelled precisely using a laser level.

3

Baffle Blade Fixing

U-profile blades are hooked or clipped onto the carrier rails at the specified pitch spacing. Each blade hangs vertically downward — aligned perfectly in parallel rows across the ceiling span.

4

Light & Service Integration

LED strip lights, recessed spotlights, and flood lights are integrated into the blade carrier system. Fire sprinkler heads and AC supply grilles are positioned between blade rows as per the service drawing.

5

Final Alignment & Handover

All blades are checked for level, parallel alignment, and equal pitch spacing. The ceiling is inspected and a final walkthrough handover is done with the client before project completion.

Full Specifications

U-Shaped Baffle Ceiling Technical Specifications

ParameterSpecification
Profile TypeU-Shape (vertical blade, open bottom)
Blade Heights50 mm / 75 mm / 100 mm / 150 mm / 200 mm / Custom
Blade Width (flange)20 – 30 mm (standard)
Panel LengthCustom — up to 6,000 mm
MaterialAluminum (AA3003) / GI (Galvanised Iron)
Thickness — Aluminum0.5 / 0.6 / 0.7 / 0.8 mm
Thickness — GI0.5 / 0.6 mm
Blade Pitch (spacing)50 – 300 mm adjustable (custom on order)
Surface FinishPowder coat — white, off-white, custom RAL color
Suspension SystemConcealed carrier rail + hanger rod system
Hanger Spacing900 – 1,200 mm centres (recommended)
Fire RatingNon-combustible — Class A fire rated
Acoustic PerformanceImproved — optional mineral wool infill available
Lighting IntegrationLED strip, spotlights, flood lights — all compatible
MEP AccessFull access between blade rows — no panel removal needed
Installation DirectionHorizontal, vertical, or diagonal blade layout
Expected Lifespan20+ years with standard maintenance
Applications

Where U-Shaped Baffle Ceiling Is Used in Ahmedabad & Gujarat

Hotel Lobbies & Atriums

The most iconic use of baffle ceiling — grand hotel lobbies and multi-storey atriums across Ahmedabad and Gujarat. 100mm or 150mm blades in gold or custom colors create an unforgettable first impression for guests.

Shopping Malls

Mall atriums and central corridors across Ahmedabad, Surat, and Vadodara — where the open baffle system accommodates sprinklers, HVAC, and lighting without a complex plenum ceiling above.

Corporate Reception Areas

Premium corporate office reception lobbies and boardrooms — baffle ceilings convey sophistication, reinforce brand identity with custom colors, and improve speech intelligibility for meetings.

Airports & Transit Hubs

Airport terminal concourses, check-in halls, and bus terminal waiting areas — baffle ceilings allow full integration of security cameras, PA speakers, and sprinklers between blade rows.

Restaurants & Food Courts

Open-format restaurants and mall food courts benefit from baffle ceilings — improved acoustics reduce dining noise, and the 3D blade design adds visual character to the dining environment.

Hospitals & Healthcare

Hospital waiting lobbies, outpatient corridors, and diagnostic centre receptions — non-combustible, hygienic baffle ceilings with full sprinkler and HVAC access that meets healthcare building requirements.

Comparison

Baffle Ceiling vs Linear Ceiling — Which to Choose?

Feature U-Baffle Ceiling This Page Linear Panel (84C/84R/150F)
Visual Effect Dramatic 3D — vertical depth & shadow Clean flat horizontal plane
MEP / Service Access Full access between blades Panels must be removed
Acoustic Performance Excellent — reduces echo Standard — reflects sound
Ventilation / Airflow Natural airflow between blades Requires cut-outs for AC
Visual Complexity High — architectural feature Low — clean background
Installation Speed Moderate — blade alignment takes time Fast — panels clip in quickly
Cost Higher — premium architectural product Lower — standard commercial choice
Best Spaces Lobbies, atriums, malls, airports Offices, hospitals, schools, homes
FAQ

Frequently Asked Questions

What is a U-shaped baffle ceiling?

A U-shaped baffle ceiling is a suspended metal ceiling made of vertical U-profile blades hanging downward from a concealed carrier system. Unlike flat panel ceilings, it creates a dramatic 3D visual effect with depth and shadow — widely used in hotel lobbies, malls, airports, and commercial atriums across Ahmedabad and Gujarat.

What blade sizes are available for baffle ceiling?

Yashvi Infra Co offers U-shaped baffle blades in 50mm, 75mm, 100mm, 150mm, and 200mm heights — in aluminum or GI, with 0.5mm to 0.8mm thickness. Custom blade heights and mixed-blade designs are available for unique architectural projects.

Do baffle ceilings improve acoustics?

Yes. The vertical blade geometry of a baffle ceiling disrupts sound reflection and reduces echo and reverberation in large open spaces. With optional mineral wool acoustic infill inside the blade cavity, baffle ceilings significantly improve sound absorption — ideal for atriums, conference halls, and open offices.

What is the difference between baffle ceiling and linear ceiling?

A linear ceiling (84C, 84R, 150F) has flat horizontal panels creating a uniform surface. A baffle ceiling has vertical blades hanging downward, creating a 3D architectural effect with visible depth and shadow. Baffle ceilings are chosen for visual impact and acoustic performance; linear ceilings for a clean flat finish.

Does Yashvi Infra Co install baffle ceiling in Ahmedabad?

Yes — we supply and install U-shaped baffle ceiling systems across Ahmedabad, Gandhinagar, Surat, Vadodara, and all of Gujarat. We provide free site visits, design consultation, itemised quotes, in-house installation, and warranty support for all baffle ceiling projects.

Get In Touch

Get a Free Quote for U-Shaped Baffle Ceiling in Ahmedabad

Planning a baffle ceiling for your hotel lobby, mall atrium, corporate reception, or commercial space in Ahmedabad or Gujarat? Yashvi Infra Co delivers premium U-shaped baffle ceiling systems with expert design consultation, precise installation, and full warranty support. Contact us today for a free site visit and quote.
